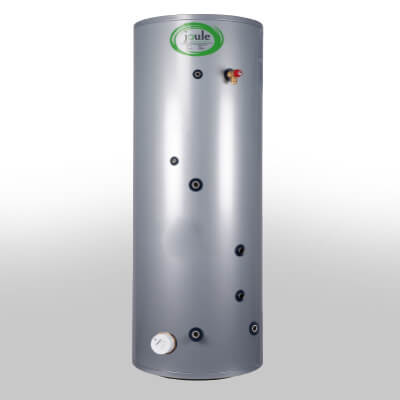

Joule Cyclone High Gain Indirect

Features & Benefits

The Joule unvented cylinder is designed to work with any air to water heat pump. The Joule hot water cylinder takes energy from the air to water heating system and heats the water in the cylinder through its high efficiency coil. The Joule UK Cyclone cylinder with work with any heatpump in the UK. Joule cylinders work excellently with a Joule heating system.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Works with Air Source Heatpumps

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOL. ERP RATING REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS SOUND POWER LEVEL  PRIMARY COIL RATING
Litre KG KG L   MINS W kWh/24h dB KW
TCIMVH-0150LFB 150 46 196 140 C 10 55 1.32 15 76
TCIMVH-0170LFB 170 54 223 160 C 10 55 1.32 15 76
TCIMVH-0200LFC 200 58 256 189 C 11 81 1.94 15 97
TCIMVH-0200NFC 200 57 255 187 C 11 78 1.87 15 97
TCIMVH-0250LFC 250 67 316 236 C 14 89 2.14 15 110
TCIMVH-0250NFC 250 66 315 237 C 14 87 2.09 15 97
TCIMVH-0300LFC 300 75 373 378 D 17 103 2.47 15 110
TCIMVH-0300NFC 300 74 372 282 C 17 92 2.21 15 110
TCIMVH-0400LFC 400 81 478 378 C 19 102 2.45 15 138
TCIMHI-0500NFC 500 107 605 494 C 22 115 2.76 15 138
