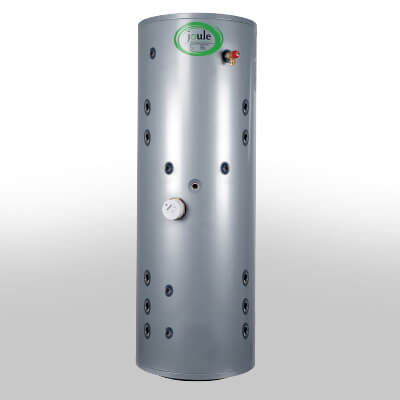

Joule Cyclone Thermal Store 1.0

Features & Benefits

The Joule Cyclone Thermal Store 1.0 is the ideal solution for multi-energy applications. The hot water is produced through an internal coil. The internal coil is a simple and straight forward solution. It will not achieve the higher flow rates which the 2.0 can achieve. The internal coil cannot be serviced or maintained unlike the 2.0.

3kW Incoloy immersions fitted as standard. Solar coil option available. Female connections throughout. Bevelled stat pocket for better fitting. Metallic grey wipe clean rigid case for a premium appearance. Ideal multi-energy tank solution. 1” direct connections. Butt Welded process used throughout and robotically welded. Branded quality components used throughout.

Categories:

General

	Standard					Solar
Capacity	200L	250L	300L	400L	500L	200L	250L	300L	400L	500L
Item No;	KCSMVI- 0200LFC	KCSMVI- 0250LFC	KCSMVI- 0300NFC	KCSMVI- 0400LFC	KCSMVI- 0500LFC	KCSMVS- 0200LFC	KCSMVS- 0250LFC	KCSMVS- 0300LFC	KCSMVS- 0400LFC	KCSMVS- 0500LFC
Height (A)	1490	1815	1600	1570	1900	1490	1815	1600	1570	1900
Diameter (B)	540	540	600	710	710	540	540	600	710	710
Weight (empty)	46	56	64	71	87	46	56	64	71	87
Weight (full)	243	302	360	471	589	243	302	360	471	589
Hot water volume	196	247	290	390	494	193	244	287	387	492
C	196	196	218	225	225	196	196	213	225	225
D	296	296	318	325	325	486	584	518	530	630
E	396	396	418	425	425	586	685	618	630	730
F	576	656	648	655	765	576	656	648	655	765
G	636	721	708	730	815	526	606	563	575	675
H	821	1038	913	920	1154	821	1038	913	920	1154
I	921	1138	1013	1020	1254	921	1138	1013	1020	1254
J	1206	1526	1328	1285	1635	1206	1526	1328	1285	1635
K	–	–	–	–	–	636	721	703	730	815
Energy Efficiency Class	C	C	C	C	C	C	C	C	C	C
Standing Loss (W)	81	87	92	102	115	83	89	96	102	115

Videos

Downloads

DIMS

Dimensions	200L	250L	250L	300L	400L	500L
A (mm)	530	530	600	600	710	710
B (mm)	1490	1815	1400	1600	1570	1900
C (mm)	1206	1526	1128	1328	1285	1635
D (mm)	921	1138	889	1013	1020	1254
E (mm)	821	1038	789	913	920	1154
F (mm)	576	656	588	648	655	765
G (mm)	586	685	568	618	630	730
H (mm)	486	584	468	518	530	630
I (mm)	196	196	218	213	225	225
J (mm)	526	606	548	563	575	675
K (mm)	636	721	633	703	730	815

Mechanical

Thermal Store Schematic – Mechanical Diagram – SF Boiler, 2 Rad Zones

Electrical

Thermal Store Schematic – Electric Diagram – SF Boiler, 2 Rad Zones

Kit Contents

Item No;		Description
TZ9-4.0-0000.5		Temp and Pressure Relief Valve
TZ9-4.0-000.75		Temp and Pressure Relief Valve
TZC-Y-0000000Z		High Limit Cut Out Stat
TZC-D-000000Z		Dual Stat
TZU-000015X22		Tundish
TZM-I-00022MM		2 Zone Motorised Valve
TZG-3.0-0.75L		Inlet Control Group
TZG-3.0-0001L		Inlet Control Group
TV-P-000012L		Expansion Vessel
TV-P-000019L
TV-P-000024L
TV-P-000035L
TV-P-000050L
TI-I-L-14-3-1		Immersion Heater
