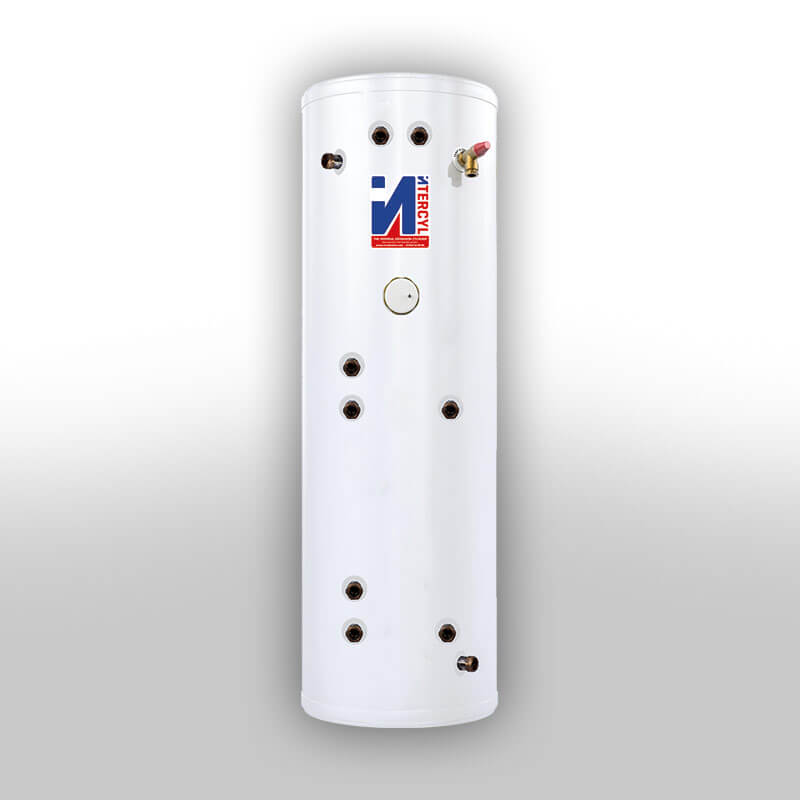

Intercyl Solar Twin Coil

Features & Benefits

Our standard range of superior quality Intercyl cylinders is built using high-grade Duplex stainless steel and designed to provide fast flowing hot water to single or multiple outlets. Manufactured to the highest standards and supplied with innovative components to ensure quick recovery, low heat loss, and economic use of energy.

  • Sizes 120 to 300 in 545mm diameter.
  • Cylinder manufactured from high-grade Duplex stainless steel.
  • Totally insulated with 50mm 100% CFC and HCFC free polyurethane foam to minimise heat loss.
  • Lightweight construction with white goods finish. Flat base for additional stability.
  • Supplied with high-quality unvented installation components.
  • Indirect units supplied with a modern fuel-saving stat that includes optional anti-legionella function.
  • All plumbing connections are clearly identified and accessible from the front of the cylinder.
  • 22mm threaded connections. The efficient patented stacked coil used in all indirect cylinders.
  • The solar version available. Long-life 3kW Incoloy immersion heater supplied as standard.
  • Upgrade to titanium and/or 6kW immersion on request.

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOLUME ERP ENERGY RATING REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS PRIMARY COIL RATING SOLAR COIL SURFACE AREA SOLAR COIL RATING
LITRES KG KG L MINS kWh/24h W KW M2 KW
TRIMVS-0180LFB 180 42 203 161 B 36 1.33 55 13.8 0.76 12.91
TRIMVS-0210LFC 210 48 232 184 B 37 1.4 58 15.34 0.878 13.68
TRIMVS-0250LFC 250 53 279 226 B 40 1.44 60 17.41 0.878 14.78
TRIMVS-0300LFC 300 63 317 254 C 41 1.81 75 19.15 0.878 16.73
