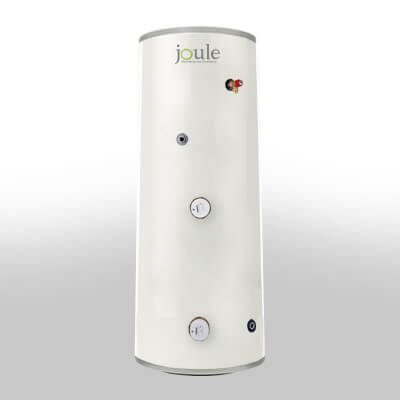

Wellmaster Direct

Features & Benefits

Wellmaster Direct hot water cylinders use heat sources that are physically located within the cylinder itself similar to an immersion heater, to heat the water. These direct cylinders are particularly located in either flats or apartments where there is no access to gas.

  • 3kW Incoloy immersions fitted as standard
  • Titanium and 6kW immersion options available on request
  • Compression connections fitted as standard
  • Bevelled stat pocket for better fitting
  • White wipe clean rigid case for a premium appearance
  • Pre plugged secondary tapping for ease of installation
  • All Connections clearly labelled
  • Butt Welded process used throughout
  • Robotically welded
  • Branded quality components

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL LOAD PROFILE  WATER VOL ERP RATING ENERGY EFFICIENCY  STANDING LOSS STANDING LOSS ANNUAL ENERGY USAGE SOUND POWER LEVEL
  Litre KG KG   L   nwh% W kWh/24h kWh/ANNUM dB
TCIWVD-0193LFC 200 40 240 L 200 C 36 78 1.87 2875 16
TCIWVD-0200NFC 200 40 240 L 200 C 36 78 1.87
TCIWVD-0250NFC 250 49 299 L 250 C 35 87 2.09
TCIWVD-0300NFD 300 40 240 L 300 C 36 92 2.21
