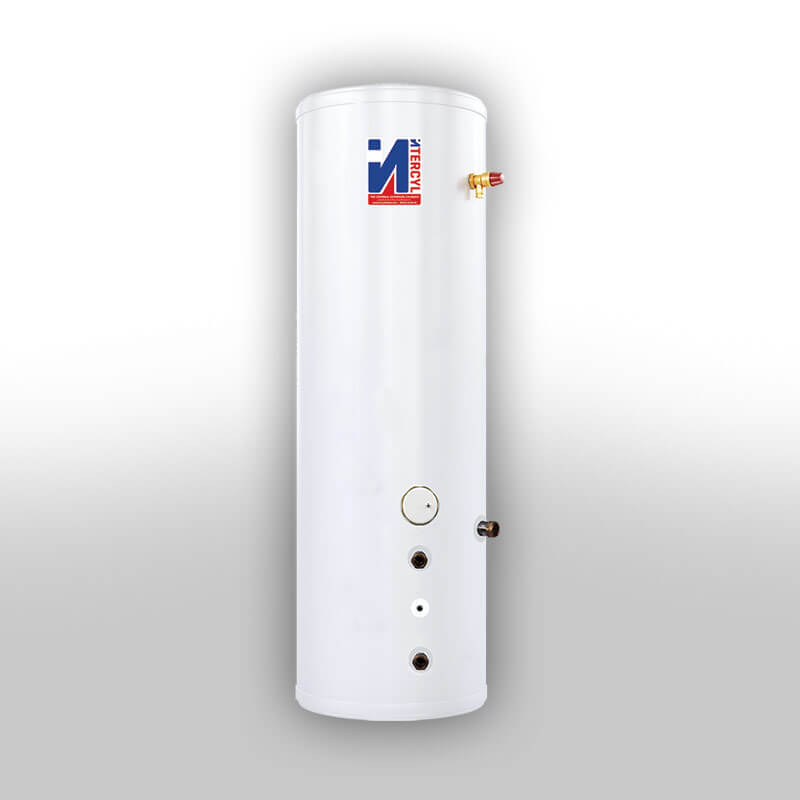

Intercyl Indirect

Features & Benefits

The Intercyl Indirect is the mainstay of the Joule catalog. Installed time and time again the unit is a competent and reliable companion for any standard boiler. The high efficiency, quick recovery coils make this cylinder perfect for even the busiest homes, ensuring long-lasting hot water stores in a unit that has been built to last.

Categories: Unvented Cylinders

General

ITEM NO	CAP.	WEIGHT EMPTY	WEIGHT FULL	WATER VOL.	ERP RATING	REHEAT TIME INDIRECT	STANDING LOSS	STANDING LOSS	PRIMARY COIL RATING
	Litre	KG	KG	L		MINS	W	kWh/24h	KW
TRIMVI-0150LFB	150	38	172	150	B	25.3	50	1.26	12.45
TRIMVI-0180LFB	180	42	207	180	B	26.16	55	1.4	14.27
TRIMVI-0210LFC	210	45	232	210	B	29.06	58	1.48	14.91
TRIMVI-0250LFC	250	51	281	250	C	32.88	60	1.76	17.7
TRIMVI-0300LFC	300	60	319	300	C	37.8	75	2.03	19.72

Videos

Downloads

DIMS

ITEM NO	HEIGHT	DIAMETER	COLD WATER INLET	PRIMARY COIL FLOW	PRIMARY COIL RETURN	AQUASTAT POCKET BOTTOM	T&P RELIEF VALVE	IMMERSION HEATER BOTTOM	IMMERSION HEATER TOP	SECONDARY RETURN
(mm)	A	B	C	D	E	F	G	H		I
TRIMVI-0150LFB	1140	545	190	298	298	368	715	348
TRIMVI-0180LFB	1324	545	190	338	338	408	848	388
TRIMVI-0210LFC	1511	545	190	373	373	443	982	423		882
TRIMVI-0250LFC	1762	545	190	373	373	443	1160	423	968	1060
TRIMVI-0300LFC	1986	545	190	373	373	443	1323	423	1065	1223

Mechanical

Electrical

Kit Contents

Item No;		Description
TZ9-4.0-0000.5		Temp and Pressure Relief Valve
TZ9-4.0-000.75		Temp and Pressure Relief Valve
TZC-Y-0000000Z		High Limit Cut Out Stat
TZC-D-000000Z		Dual Stat
TZU-000015X22		Tundish
TZM-I-00022MM		2 Zone Motorised Valve
TZG-3.0-0.75L		Inlet Control Group
TZG-3.0-0001L		Inlet Control Group
TV-P-000012L		Expansion Vessel
TV-P-000019L
TV-P-000024L
TV-P-000035L
TV-P-000050L
TI-I-L-14-3-1		Immersion Heater
