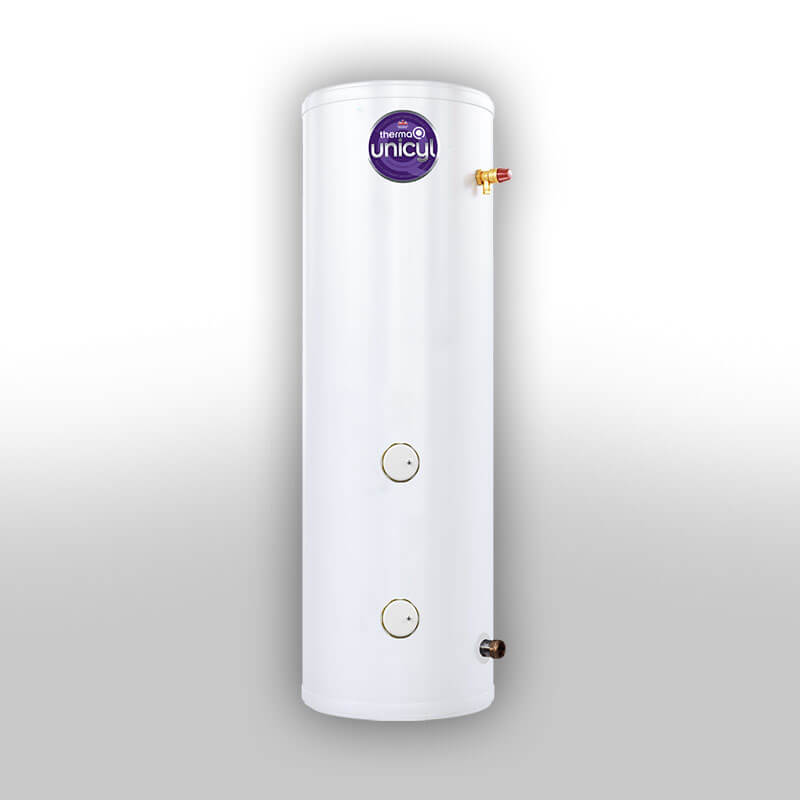

Therma Q Unicyl Direct Slimline

Features & Benefits

Therma Q Unicyl cylinders is built using high-grade Duplex stainless steel and designed fit in to tight spaces with its smaller cylinder body diameter. Manufactured to the highest standards and supplied with innovative components to ensure quick recovery, low heat loss, and economic use of energy. Made from Duplex Stainless Steel. The ThermaQ cylinder is insulated with 50mm 100% CFC and HCFC free polyurethane to minimise heat loss.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Heated electrically with two factory fitted immersions

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL LOAD PROFILE WATER VOLUME ERP ENERGY RATING ENERGY EFFICIENCY  STANDING LOSS STANDING LOSS ANNUAL ENERGY USAGE
LITRE KG KG   L   nwh% MINS W kWh/24h
TTUMVD-0060SFC 60 19 79 M 60 C 36 0.92 38 1439
TTUMVD-0090SFC 90 21 111 M 90 C 35 1.03 43 1458
TTUMVD-0120SFC 120 26 146 M 120 C 34 1.24 52 1493
TTUMVD-0150SFC 150 33 183 M 150 C 34 1.44 60 1527
TTUMVD-0180SFC 180 38 218 M 180 C 34 1.53 64 1542
TTUMVD-0210SFC 210 41 251 M 210 C 33 1.62 68 1502
